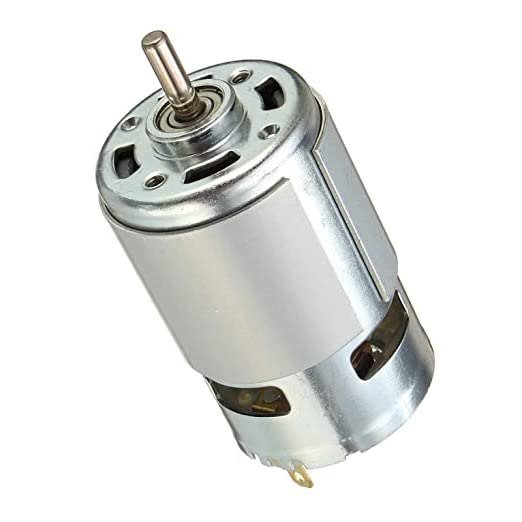

Name: RS-775 DC 12V-24V High Speed Metal Large Torque 5000-10000 RPM DC Motor
SKU: EL-006
Availability: InStock

Model	RS 775
Operating Voltage Range	12V to 24V
No-Load Speed	5000-10000 RPM
Stall Torque	High torque
Output Power	Up to 200W (depends on voltage and load)

Description

Operating Voltage: 12V(Recommended Voltage is 12v, Although the motor can run on 24v but we don’t recommend it using it on 24V)
No-load Current: 0.6A
Maximum Current: 2A
No Load Speed RPM @12V: Approx ~5000/6000 RPM
No Load Speed RPM @24V: Approx ~11000/12000 RPM
Mounting Screw Hole Diameter: ~4 mm
Distance between Screw Holes: ~33 mm
Diameter of the Motor: 41mm(Without metal clip)
Length of the Motor (Body): 67mm
Length of shaft: ~16-20 mm(Veries with Every Lot but usually lies in this bracket)
Motor Shaft Diameter: 5mm
Main Color: Silver Tone
